| Wyświetlacz |
|
| Ekran dotykowy |
SuperAtom IPS panel (pojemnościowy) |
| Rozmiar |
5.2-cala |
| Rozdzielczość |
1920 x 1080 |
| PPI |
427 |
| Głębia bitowa |
10-bit (8+2 FRC) |
| Typ podświetlenia |
Podświetlenie krawędziowe |
| Jasność (cdm2 / Nits) |
1000 |
| Proporcje |
16:9 |
| Color Gamut |
Rec.709 |
| Obsługa kalibracji |
Atomos Calibrator with Calibrite ColorChecker Display Pro & ColorChecker Display Plus |
| Color Pipeline |
|
| Gamma |
Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, |
| Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 |
| / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / |
| LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, |
| JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm |
| Flog, PQ (HDR10), HLG, Nikon N-Log |
| Gamut |
Bt2020, DCI P3, PDCI p3 65 Sony SGamut / SGamut3 / SGamut3.cine / |
| Canon Cinema / DCI P3 / DCI P3+ / BT2020 |
| Panasonic V Gamut |
| Arri Alexa Wide Gamut |
| Rec709 |
| JVC LS300 |
| Red DragonColor / DragonColor2 / RedColor2 / |
| RedColor3 / RedColor4 / RedWideGamut |
| 3D LU+A76T Display |
.Cube Format |
| 3D LUT Down Stream |
Loop out |
| 3DLUT 50/50 |
Yes |
| Monitoring Modes |
Native / HLG / PQ / 3D LUT |
| HDR output Conversion |
Log / HDR to HLG / PQ / Dolby Vision |
| Wejścia wideo |
|

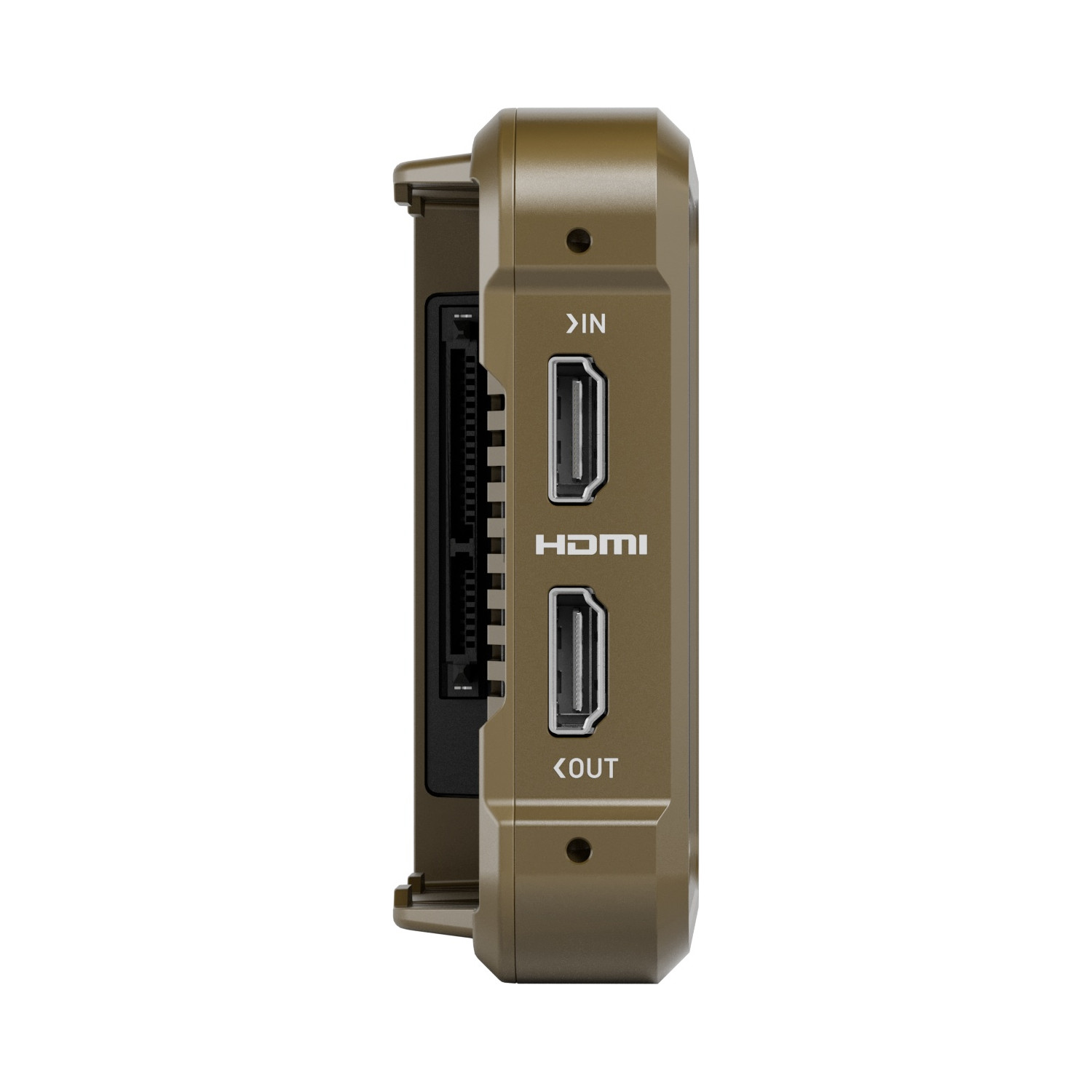

| HDMI |
1 x HDMI (2.0) 4Kp60 |
| HDMI RAW |
Apples ProRes RAW up to 8Kp30 from compatible cameras |
| SDI |
Optional Via Atomos Connect module |
| SDI RAW |
Optional Via Atomos Connect module |
| Bit Depth |
8/10-bit video / RAW up to 16-bit |
| Video Chroma Subsampling |
4:2:2 |
| HDCP copy protection |
Not supported |
| Metadata |
|
| HDMI |
RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut |
| Wyjścia wideo |
|
| HDMI |
1 x HDMI (2.0) 4Kp60 |
| RJ45 / GigE |
Optional Via Atomos Connect module |
| Wi-Fi 6 |
Optional Via Atomos Connect module |
| Video Chroma Subsampling |
4:2:2 |
| Bit Depth |
10-bit video |
| Web Streaming |
|
| USB UVC |
Optional Via Atomos Nexus 4K or AtomX Cast |
| RJ45 / GigE |
Optional Via Atomos Connect module |
| RTMP / S |
Optional Via Atomos Connect module |
Konwersja sygnału wideo
|
|
| HDMI to SDI |
Optional Via Atomos Connect module |
| SDI to HDMI |
Optional Via Atomos Connect module |
| Audio In/Out |
|
| Audio Quality |
24/48kHz |
| Audio Codec |
PCM |
| HDMI |
8ch 24-bit, input dependent |
| SDI |
12ch 24-bit, input dependent |
| Analogue Audio in |
3.5mm 2ch. |
| Headphone out |
3.5mm 2ch. |
| Audio input delay |
User definable from menu |
| Timecode / Sync / Control |
|
| Embedded |
HDMI and SDI |
| Time of day |
Yes, Time and Date |
| LTC |
Optional Via Atomos Connect module |
| Genlock |
Optional Via Atomos Connect module |
| Wireless AirGlu RF Server and Client |
Optional Via Atomos Connect module |
| Wireless AirGlu BT Server |
Optional Via Atomos Connect module |
| Resolution & Frame Rates (Record, Monitor & Playback) |
|
| Supported base resolution & FPS |
|
| 8K |
RAW Only up to 30p via HDMI |
| 6K |
RAW Only up to 60p via HDMI |
| 4K DCI |
23.98/24/25/29.9/30/50/59.94/60p (RAW only up to 120p) |
| 4K UHD |
23.98/24/25/29.9/30/50/59.94/60p |
| 2K DCI 2046 x 1080 |
Optional via AtomX SDI module |
| Anamorphic |
3.5k: RAW up to 60p (from supported cameras only) |
| FHD 1920 x 1080 Progressive |
23.98/24/25/29.9/30/50/59.94/60/100/120p |
| FHD 1920 x 1080 PsF |
converted to P and looped out PsF |
| FHD 1920 x 1080 Interlaced |
23.98/24/25/29.9/30/50/59.94/60i |
| Recording CODEC |
|
| Apple ProRes Raw |
ProRes RAW, HQ |
| Apple ProRes |
LT, 422, 422HQ |
| Avid DNxHD |
DNxHD 220x,220,145,36 |
| Avid DNxHR |
LB, SQ, HQ, HQX. |
| H.265 |
LQ,MQ,HQ,XQ in 8/10Bit, 4 2 2 and 4 2 0 |
| Playback |
|
| Playlist |
Yes, Create customer play lists from full or sub clips |
| Loop |
Yes, with user customisable in / out markers |
| Apple ProRes Raw |
Yes, recorded clips |
| Apple ProRes |
Yes, with Linear PCM audio |
| Avid DNx |
Yes, with Linear PCM audio |
| H.265 |
Yes |
| Recording functions |
|
| Pre-roll record |
Yes (HD 8s, 4K 2s) - Not available in RAW |
| Timelapse |
Yes |
| Simultaneous proxy record |
Yes |
| Supported media |
|
| Master Caddy I |
Not compatible |
| Master Caddy II |
For 2.5-inch hard drives in MasterCaddy II |
| Master Caddy III |
For 2.5-inch hard drives in MasterCaddy III (needed for Atomos Connect) |
| SSDmini |
Native size and fit |
| CFAST II |
With supported cards via optional SSDmini CFAST II Adaptor |
| File Naming |
Unit Name - Scene/Shot/Take |
| File System |
ExFAT |
| On screen tools |
|
| Waveform |
Yes, 3 size / Position |
| RGB parade |
Yes, 3 size / Position |
| Vector scope |
Yes, 2 size / Position |
| 1 x Zoom |
Yes. 1:1 Pixel mapping for 4K |
| 2 x Zoom |
Yes |
| Focus peaking |
Colour selected / threshold setting / colour |
| / Mono / edges only |
| Atomos False color |
Yes, with Scale |
| ARRI False color |
Yes |
| EL Zone |
Yes |
| Zebra |
Yes, Adjustable |
| Isolate color channel |
Blue Only |
| Cine Frame Guides |
2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Social Frame guides |
9:16, 1:1, 191:1, 4:5 |
| Onion Skin |
Yes |
| Safe areas |
Action and Graphic |
| Grid markers |
9 grid |
| Anamorphic desqueeze |
1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x |
| Display Flip |
Vertical Only |
| Onboard Signal Processing |
|
| Pulldown removal |
24/25/30pSF > 24/25/30p (2:2 pulldown) |
| 60i > 24p (3:2 pulldown) |
| 4K UHD downscale for HD |
Loop out - 4K UHD to FHD |
| DCI Crop |
Loop out - 17:9 to 16:9 Crop |
| Remote Control |
|
| HDMI |
Auto HDMI Trigger, Supported Protocols - Canon, Sony, |
| Atomos Open Standard |
| SDI |
SDI trigger camera selectable with Atomos Connect |
| Serial 2.5mm Jack |
LANC control and calibration via |
| optional USB to serial cable |
| AirGlu BT |
Optional Via Atomos Connect module |
| AirGlu RF |
Optional Via Atomos Connect module |
| USB |
|
| RJ45 |
|
| RS422 |
|
| External Device Control |
|
| Serial 2.5mm Jack |
Camera control for supported cameras via Optional USB to Serial Cable |
| Bluetooth LE |
Optional Via Atomos Connect module |
| Wireless RF |
Optional Via Atomos Connect module |
| USB |
|
| RJ45 |
|
| Supported Applications |
|
| XML |
Cut tag EDL in FCPX XML |
| Apple ProRes Raw |
Apple FCPX, Adobe Premiere, After Effects, Avid Media Composer, GrassValley Edius, Assimilate Scratch, Baselight Film Light. |
| Video Codecs |
All Applications with support for Apple ProRes and Avid DNx in .MOV wrapper |
| What’s in the box |
|
| Accessories included |
Ninja Ultra, 1 x battery eliminator, 1 x USB C PD to 2.1mm DC power lead and QuickStart Guide |
| Software included |
|
| Optional extras |
Accessory Kit 5-inch Vers II, Sunhood, DC to DTap, Power kit, HDMI cables, USB to serial cable, |
| Warranty |
|
| Standard |
1 year. Extended to 2 years on product registration. Atomos Care360 available as subscription |
| Physical Specifications |
|
| Dimensions (W x H x D mm) |
151 x 91.5 x 31mm |
| Weight |
360g / 12.7oz |
| Mount points |
1 x anti-rotation 1/4-inch / 3/8-inch top and bottom |
| Ambient operating temperature |
Up to 40 degrees Celsius |
| Construction & Control |
|
| Body |
Aluminium with ABS plastic |
| Cooling |
Actively controlled fan and heat sink |
| Tally light |
Rear and front |
| Multi-function button |
Power / lock screen |
| AtomXpansion slot |
Yes |
| Power |
|
| Input voltage |
6.2V to 16.8V |
| Operating power |
5.8-7.2v (Battery) or min 30W via USB C PD cable |
| Compatible batteries |
NPF L series |
| Built in battery |
No |
| Battery run time Record |
5200mAh - up to 2hrs (monitor & record 4K 60p) |
| 7800mAh - up to 3hrs (monitor & record 4K 60p) |
| DC in connector |
Via DC jack on battery eliminator |
| DTAP |
Via battery eliminator and optional DTap to DC cable |
