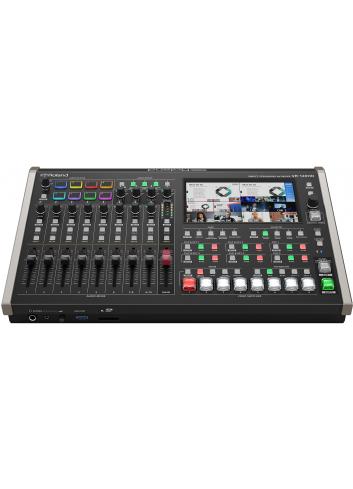

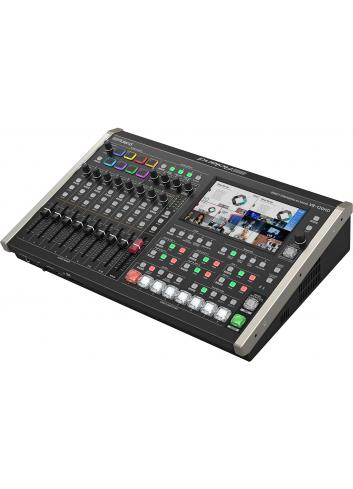

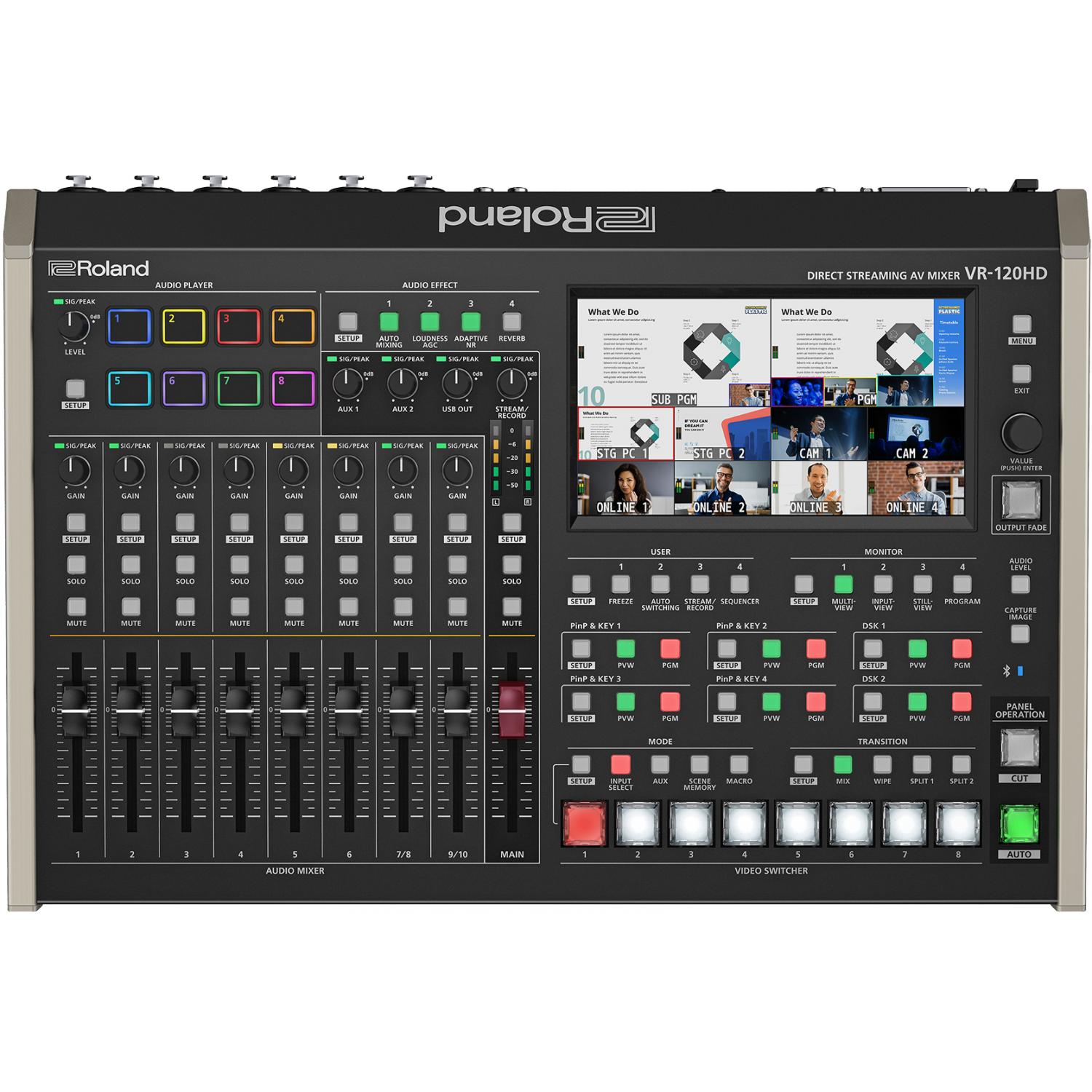

| VIDEO |
|

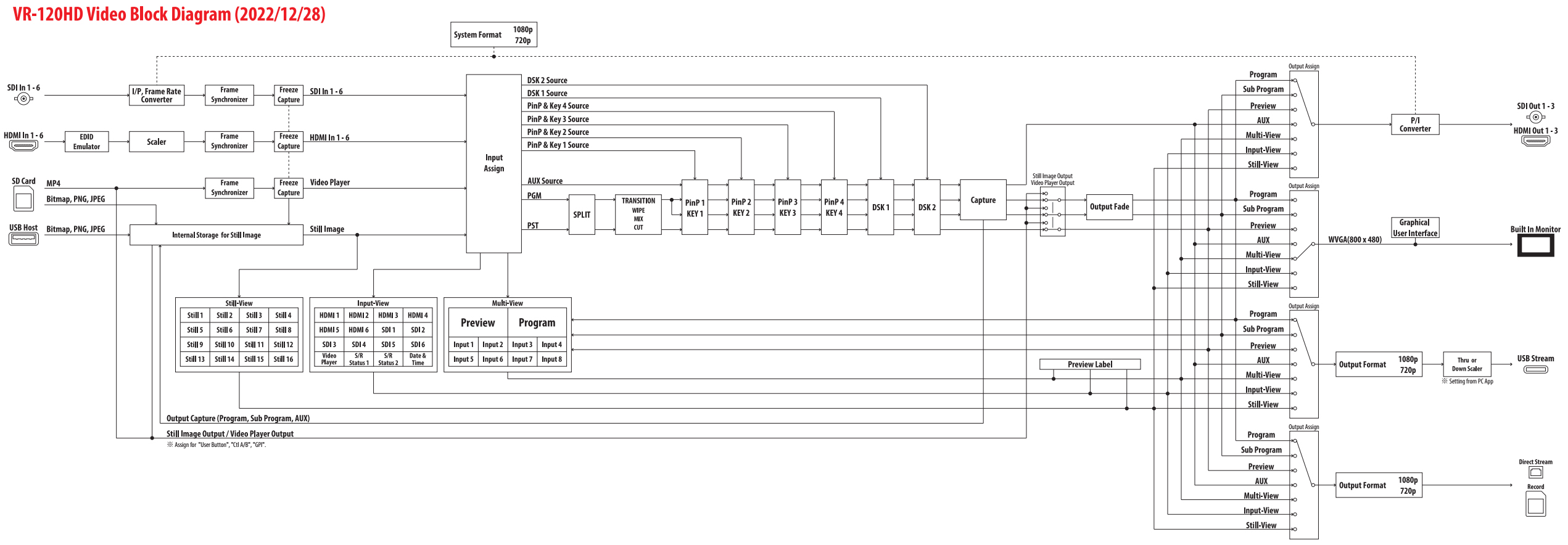

| Video Processing |
4:2:2 (Y/Pb/Pr), 8-bit |
| Number of Video Channels |
12 channels |
| Video Input Formats |
HDMI IN 1--6 |
|
480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1 |
|
576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2 |
|
1080/23.98p, 1080/24p |
|
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) |
|
WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz) |
|
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz) |
|
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) |
|
* The refresh rate is the maximum value of each resolution. |
|
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11. |
|
* 1920 x 1200/60 Hz: Reduced blanking |
|
* The input interlaced video signal is converted to progressive video signal by internal processing. |
|
*1 Frame Rate = 59.94 Hz, 60 Hz |
|
*2 Frame Rate = 50 Hz |
|
|
|
SDI IN 1--6 |
|
720/59.94p *1, *3 |
|
720/50p *1, *4 |
|
1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3 |
|
1080/50i, 1080/50p, 1080/25p *2, *4 |
|
1080/23.98p, 1080/24p *2 |
|
* The input interlaced video signal is converted to progressive video signal by internal processing. |
|
*1 Output Format = 720p |
|
*2 Output Format = 1080i or 1080p |
|
*3 Frame Rate = 59.94 Hz, 60 Hz |
|
*4 Frame Rate = 50 Hz |
| Video Output Formats |
HDMI OUT 1--3, SDI OUT 1--3: |
|
720/59.94p *1, *4, 720/60p *1, *5, 720/50p *1, *8, 1080/59.94i *2, *4, 1080/60i *2, *5, 1080/50i *2, *8, 1080/59.94p *3, *4, 1080/60p *3, *5, 1080/29.97p *3, *6, 1080/30p *3, *7, 1080/50p *3, *8, 1080/25p *3, *9, 1080/23.98p *3, *10, 1080/24p *3, *11 |
|
*1 Output Format = 720p |
|
*2 Output Format = 1080i |
|
*3 Output Format = 1080p |
|
*4 Frame Rate = 59.94 Hz |
|
*5 Frame Rate = 60 Hz |
|
*6 Frame Rate = 29.97 Hz |
|
*7 Frame Rate = 30 Hz |
|
*8 Frame Rate = 50 Hz |
|
*9 Frame Rate = 25 Hz |
|
*10 Frame Rate = 23.98 Hz |
|
*11 Frame Rate = 24 Hz |
|
|
|
USB STREAM: |
|
1080/59.94p, 720/59.94p, 640 x 480/59.94p *1, 1080/60p, 720/60p, 640 x 480/60p *2, 1080/29.97p, 720/29.97p, 640 x 480/29.97p *3, 1080/30p, 720/30p, 640 x 480/30p *4, 1080/50p, 720/50p, 640 x 480/50p *5, 1080/25p, 720/25p､640 x 480/25p *6, 1080/23.98p, 720/23.98p､640 x 480/23.98p *7, 1080/24p, 720/24p､640 x 480/24p *8 |
|
*Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported. |
|
*1 Frame Rate(USB Out) = 59.94 Hz |
|
*2 Frame Rate(USB Out) = 60 Hz |
|
*3 Frame Rate(USB Out) = 29.97 Hz |
|
*4 Frame Rate(USB Out) = 30 Hz |
|
*5 Frame Rate(USB Out) = 50 Hz |
|
*6 Frame Rate(USB Out) = 25 Hz |
|
*7 Frame Rate(USB Out) = 23.98 Hz |
|
*8 Frame Rate(USB Out) = 24 Hz |
| Stream and Record formats |
720/59.94p *1, *3, 720/60p *1, *4, 720/29.97p *1, *5, 720/30p *1, *6, 720/50p *1, *7, 720/25p *1, *8, 1080/59.94p *2, *3, 1080/60p *2, *4, 1080/29.97p *2, *5, 1080/30p *2, *6, 1080/50p *2, *7, 1080/25p *2, *8, 1080/23.98p *2, *9, 1080/24p *2, *10 |
|
*1 Output Format = 720p |
|
*2 Output Format = 1080p |
|
*3 Frame Rate (Stream/Record) = 59.94 Hz |
|
*4 Frame Rate (Stream/Record) = 60 Hz |
|
*5 Frame Rate (Stream/Record) = 29.97 Hz |
|
*6 Frame Rate (Stream/Record) = 30 Hz |
|
*7 Frame Rate (Stream/Record) = 50 Hz |
|
*8 Frame Rate (Stream/Record) = 25 Hz |
|
*9 Frame Rate (Stream/Record) = 23.98 Hz |
|
*10 Frame Rate (Stream/Record) = 24 Hz |
|
|
|
File Format: MP4 |
|
Codec: |
|
H.264, target bitrate up to 20,000 kbps |
|
AAC LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps |
|
File Format: WAV |
|
Codec: |
|
Linear PCM, 16 bits, 48 kHz, stereo |
|
* If either the streaming and recording format or the file played by the video player exceeds 1080/30p, the streaming and recording and video player functions cannot be used simaltaneously. |
|
* If the bitrate setting for Streaming and Recording and the bitrate of the file played on Video Player exceeds 20,000 kbps, Streaming and Recording and Video player cannot be used simultaneously. |
| Video Player |
File Format: MP4 (H.264, AAC), Average bit rate of 20,000 kbps or less, Maximum 1080/60p |
|
* If either the streaming and recording format or the file played by the video player exceeds 1080/30p, the streaming and recording and video player functions cannot be used simaltaneously. |
|
* If the bitrate setting for Streaming and Recording and the bitrate of the file played on Video Player exceeds 20,000 kbps, Streaming and Recording and Video player cannot be used simultaneously. |
| Still Image: |
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. |
|
PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color |
|
JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color |
|
* It can be stored up to 16 files in the internal memory. |
|
* It can be exported in the SD Card and USB flash drive. |
|
* PNG alpha channel supported. |
| Video Effects |
Transition: Cut, Mix (Dissolve/Fam/Nam), WIPE (8 types), SPLIT (2 types) |
|
Composition: PinP x 4 (Square, Circle, Diamond), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key) |
|
Others: Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay |
| AUDIO |
|
| Audio Processing |
Sample rate: 24 bits, 48 kHz |
| Number of Audio Channels |
42 channels |
| Audio Formats |
USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch |
|
Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch |
|
HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch |
|
HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch |
|
SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M) |
|
SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M) |
| Audio Player |
File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo) |
|
* It can be stored up to 16 tracks in the internal memory. |
| Audio Effects |
Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing |
|
Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay |
|
Others: Output fade, Test tone output |
| COMMON SECTION |
|
| Recording Media |
SDHC/SDXC card (sold separately) |
|
USB Memory (sold separately) |
|
* SDXC card is required for video recording. |
| Other Functions |
Scene Memory (32 types) |
|
Macro Control (100 types) |
|
Sequencer Control (1000 types) |
|
Sequencer Control |
|
Panel lock function |
|
EDID Emulator |
|
Auto Switching |
|
Auto Input Detect |
|
Smart Tally |
|

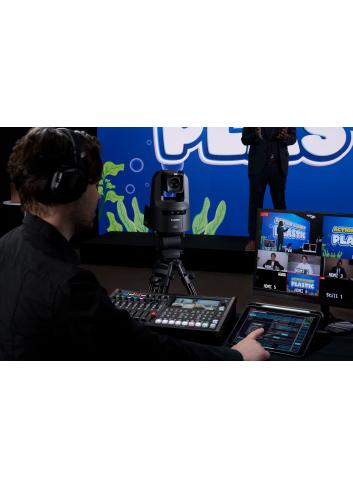

Remote Camera Control (Up to 12 units) |
|
External Rec Control |

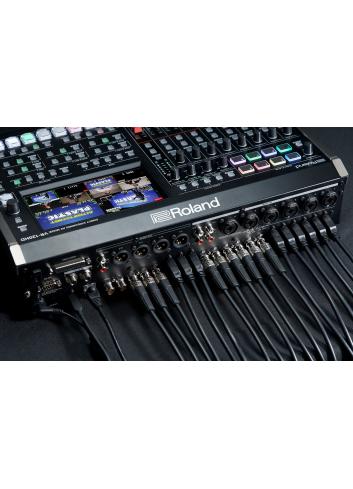

| CONNECTORS |
|
| Video Input Connectors |
HDMI IN 1--6: HDMI type A x 6 |
|
* HDCP Supported |
|
* Multi-format Supported |
|
|
|
SDI IN 1--6: BNC type x 6 |
|
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M |
| Video Output Connectors |
HDMI OUT 1--3: HDMI type A x 3 |
|
* HDCP Supported |
|
|
|
SDI OUT 1--3: BNC type x 3 |
|
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M |
|
|
|
USB STREAM: USB Type-C (TM) |
| Audio Input Connectors |
Analog: |
|
AUDIO IN 1--6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load) |
|
AUDIO IN 7/L, 8/R: RCA phono type |
|
|
|
Digital: |
|
USB STREAM: USB Type-C (TM) |
|
Bluetooth |
|
HDMI IN 1--6: HDMI type A x 6 |
|
SDI IN 1--6: BNC type x 6 |
| Audio Output Connectors |
Analog: |
|
AUDIO OUT 1--4: XLR type |
|
AUDIO OUT 5--6: RCA phono type |
|
PHONES: Stereo 1/4-inch phone type, Stereo miniature phone type |
|
|
|
Digital: |
|
USB STREAM: USB Type-C (TM) |
|
HDMI OUT 1--3: HDMI type A x 3 |
|
SDI OUT 1--3: BNC type x 3 |
| Other Connectors |
USB HOST: USB A type (for USB flash drive) |
|
USB STREAM: USB Type-C (TM) (for remote control from PC and iPad) |
|
Bluetooth: for remote control from iPad |
|
CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal) |
|
TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8) |
|
RS-232: DB-9 type (Male) (for Remote Control) |
|

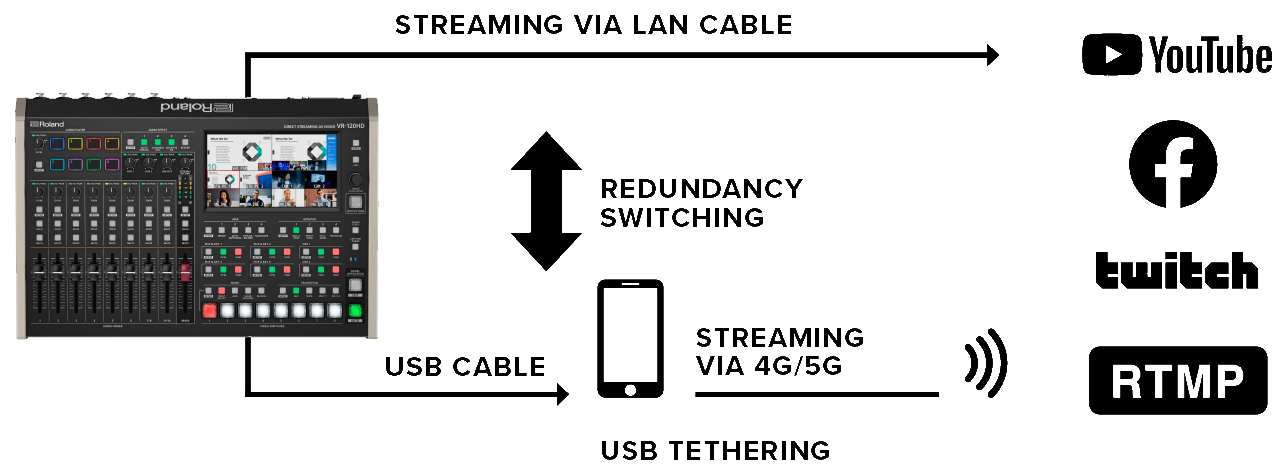

DIRECT STREAM: RJ45, 1000BASE-TX (for Live Streaming and Remote Control) |
|
Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level |
| AUDIO INPUT/OUTPUT CHARACTERISTICS |
|
| Input Level |
AUDIO IN 1--6: -64--+4 dBu (Maximum: +24 dBu) |
|
AUDIO IN 7/L, 8/R: -10 dBu (Maximum: +10 dBu) |
| Input Impedance |
AUDIO IN 1--6: 30 k ohms |
|
AUDIO IN 7/L, 8/R: 7 k ohms |
| Output Level |
AUDIO OUT 1--4 (XLR): +4 dBu (Maximum: +24 dBu) |
|
AUDIO OUT 5--6 (RCA): -10 dBu (Maximum: +10 dBu) |
|
PHONES: 92 mW + 92 mW (32 ohms) |
| Output Impedance |
AUDIO OUT (XLR): 600 ohms |
|
AUDIO OUT (RCA): 1 k ohm |
|
PHONES: 56 ohms |
| Residual Noise Level (IHF-A, typ.) |
-92 dBu (All faders: Min) |
|
-89 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 Connector, Analog gain: Min) |
|
-62 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 Connector, Analog gain: Max) |
|
* Input 150 ohms terminate |
|
* Output Connector: AUDIO OUT 1--4 Connectors (XLR) |
|
|
|
-101 dBu (All faders: Min) |
|
-100 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 jack, Analog gain: Min) |
|
-75 dBu ([MAIN] Fader: Unity, Input faders: Unity only one AUDIO IN 1 jack, Analog gain: Max) |
|
* Input 150 ohms terminate |
|
* Output Connector: AUDIO OUT (RCA) Connectors |
| OTHERS |
|
| Display |

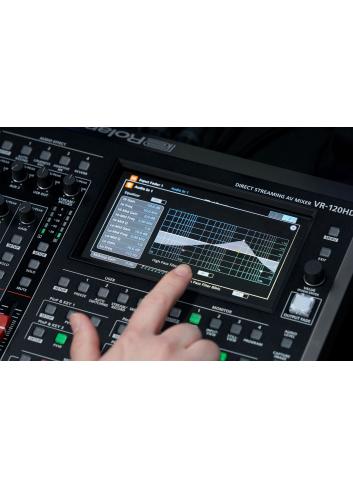

Graphic Type, 7", Wide VGA (800 x 480 dots), backlite LCD (Color/Touch screen) |
| Power Supply |
AC Adaptor |
| Current Draw |
3.0 A |
| Power Consumption |
69 W |
| Operation Temperature |
+0 to +40 degrees Celsius |
| Dimensions |
437 (W) x 304 (D) x 109 (H) mm |
| Weight (excluding AC adaptor) |
5.3 kg |
|
11 lbs 11 oz |
| Accessories |
Startup Guide |
|
Leaflet "USING THE UNIT SAFELY" |
|
AC adaptor |
|
Power cord |
|

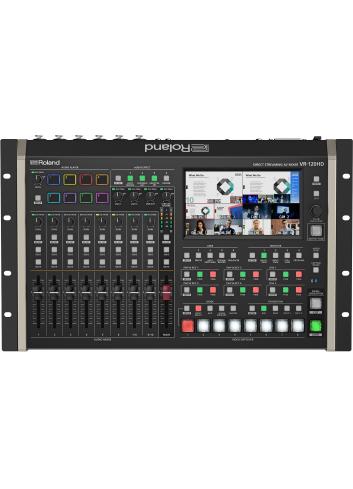

Rack-mount angle x 2 |
|
Rack-mount angle mounting screw x 6 |
|
|
|
* 0 dBu = 0.775 Vrms |
|
* This product is a Class A digital device under FCC part 15. |
|
All specifications and appearances are subject to change. |
